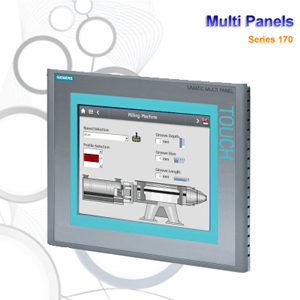

Description

The Multi Panel MP 177 represents the entry into the class of multifunctional platforms. Based on Windows CE it combines the ruggedness of operator panels with the flexibility of PCs

Benefits

• Especially space-saving and low-priced solution in the form of a complete system with Software PLC
• Innovative HMI concepts thanks to Smart options
• Increased flexibility thanks to standard hardware and software interfaces

Range of application

Multi Panel for HMI and other tasks of limited to medium complexity; for the use in PROFIBUS DP networks; particularly suitable for cramped space conditions directly at the machine.

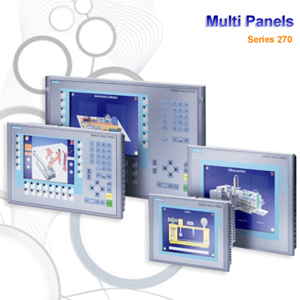

For HMI tasks in the higher performance range, the 270 series offers touch- and operator panels – each with either an 8” or 10” display.

The Windows CE-based devices feature 6 MB of application memory and high-contrast TFT displays with VGA resolution
Commensurate with the more demanding application profile, the devices offer a wide range of interfaces, the option of using scripts and archives, and generally larger quantity structures.

A non-volatile alarm buffer and 16 online-switchable languages are other attributes of this performance class. All MP 277 device variants can be used as the platform fort the Software PLC WinAC MP. The functionality of the Software PLC SIMATIC WinAC MP 277 corresponds to a CPU 315 of the S7-300 system.

As complete solution comprised of Multi Panel and WinAC MP option, the system also lends itself as a replacement for the larger SIMATIC C7 control systems.

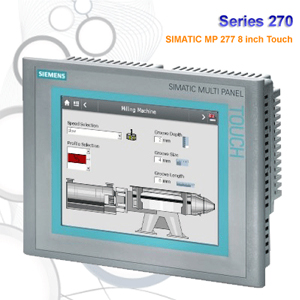

SIMATIC MP 277 8 inch Touch

Description

Lowest-priced and most compact Multi Panel of the 270 series offering VGA resolution (640 x 480 pixels) with small external dimensions.

Benefits

• VGA resolution with an exceptionally small footprint
• Comprehensive functionality
• Wide range of connection options
• Innovative HMI concepts thanks to Smart options
• Can be used worldwide with 32 configurable languages (of which 16 are online-switchable)

Area of application

Like all devices of the 270 series, the MP 277 8” Touch is intended for HMI tasks of medium to higher complexity, and for use in PROFIBUS DP networks or PROFINET environments. In addition to providing HMI standard functionality, the application range can be expanded through the WinCC flexible options Smart Access, Smart Service , OPC Server and Audit. Together with the software-PLC WinAC MP, the MP 277 8” Touch forms a combined platform for control and visualization tasks.

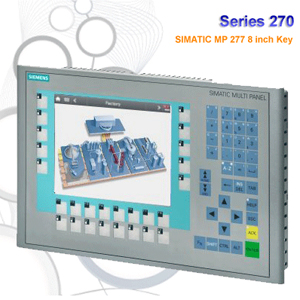

SIMATIC MP 277 8 inch Key

Description

Smallest Multi panel with membrane keyboard for applications where a complete keyboard is needed but only a device with a small footprint can be used.

Benefits

• VGA resolution and key operation with a small footprint
• Comprehensive functionality
• Wide range of connection options
• Innovative HMI concepts thanks to Smart options
• Can be used worldwide with 32 configurable languages (of which 16 are online-switchable)

Area of application

Like all devices of the 270 series, the MP 277 8” Key is intended for HMI tasks of medium to higher complexity, and for use in PROFIBUS DP networks or PROFINET environments. In addition to providing HMI standard functionality, the application range can be expanded through the WinCC flexible options Smart Access, Smart Service , OPC Server and Audit. Together with the software-PLC WinAC MP, the MP 277 8” Key forms a combined platform for control and visualization tasks.

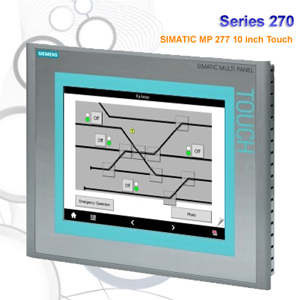

SIMATIC MP 277 10 inch Touch

Description

Powerful Multi Panel in the established 10” size segment that with VGA resolution (640 x 480 pixels) and a screen diagonal of 10.4” is a match for more demanding visualization tasks. The MP 277 10” Touch is also available with a stainless steel front for applications in the food & beverage industry

Benefits

• Comprehensive functionality
• Wide range of connection options
• Innovative HMI concepts thanks to Smart options
• Can be used worldwide with 32 configurable languages (of which 16 are online-switchable)

Area of application

Like all devices of the 270 series, the MP 277 10” Touch is intended for HMI tasks of medium to higher complexity, and for use in PROFIBUS DP networks or PROFINET environments. In addition to providing HMI standard functionality, the application range can be expanded through the WinCC flexible options Smart Access, Smart Service, OPC Server and Audit. Together with the software-PLC WinAC MP, the MP 277 10” Touch forms a combined platform for control and visualization tasks.

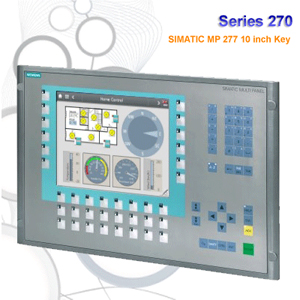

SIMATIC MP 277 10 inch Key

Description

Powerful Multi Panel in the established 10” size segment that with VGA resolution (640 x 480 pixels) and a screen diagonal of 10.4” is a match for more demanding visualization tasks

Benefits

• Comprehensive functionality
• Wide range of connection options
• Innovative HMI concepts thanks to Smart options
• Can be used worldwide with 32 configurable languages (of which 16 are online-switchable)

Area of application

Like all devices of the 270 series, the MP 277 10” Key is intended for HMI tasks of medium to higher complexity, and for use in PROFIBUS DP networks or PROFINET environments. In addition to providing HMI standard functionality, the application range can be expanded through the WinCC flexible options Smart Access, Smart Service, OPC Server and Audit. Together with the software-PLC WinAC MP, the MP 277 10” Key forms a combined platform for control and visualization tasks.

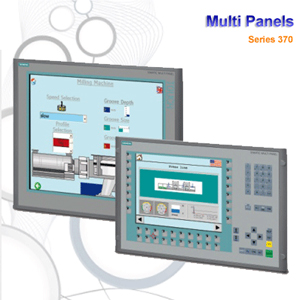

For HMI tasks in the upper performance range, the 370 series offers three devices with touchscreen operation and one model with membrane keypad. The Windows CE-based devices feature 12 MB of application memory and high-contrast TFT displays with resolutions from 800 x 600 to 1280 x 1024 pixels.

For the operation with WinCC flexible options, 12 MB of supplemental memory is available. All devices possess a battery-less non-volatile alarm buffer and additional non-volatile memory for software-PLC data.

Commensurate with the more demanding application profile, the devices offer a wide range of interfaces, the option of using scripts and archives, and generally larger quantity structures. 16 online-switchable languages are other attributes of this performance class
In addition to WinCC flexible Runtime, the Microsoft Media Player, Microsoft Internet Explorer for Pocket PCs and Microsoft Viewer (Word, Excel and PDF) are included in the delivery scope.

All MP 377 models can be used as platform for the software-PLC WinAC MP. The software-PLC SIMATIC WinAC MP 377 offers a level of performance similar to that of a CPU 317 of the S7-300 system. As complete solution comprised of Multi Panel and WinAC MP option, the system provides maximum performance with additional price savings.

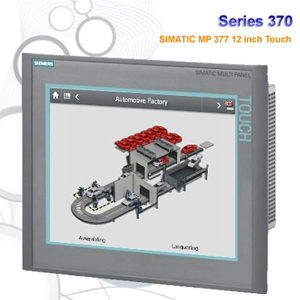

SIMATIC MP 377 12 inch Touch

Description

Lowest-priced Multi Panel of the 370 series with compact dimensions and a TFT touch screen display (800 x 600 pixels).

Benefits

• Comprehensive functionality
• Wide range of connection options
• Innovative HMI concepts thanks to Smart options
• Additional software included in the delivery scope
• Can be used worldwide with 32 configurable languages (of which 16 are online-switchable)

Area of application

Like all devices of the 370 series, the MP 377 12” Touch is intended for HMI tasks of higher complexity, and for use in PROFIBUS DP networks or PROFINET environments. In addition to providing HMI standard functionality, the application range can be expanded through the WinCC flexible options Smart Access, Smart Service , OPC Server and Audit. Together with the Software-PLC WinAC MP, the MP 377 12” Touch forms a combined platform for control and visualization tasks.

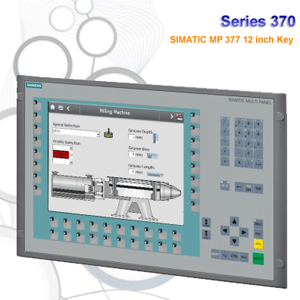

SIMATIC MP 377 12 inch Key

Description

Only Multi Panel of series 370 with a membrane keyboard equipped with a 12 inch TFT display with 800 x 600 pixels resolution.

Benefits

• Comprehensive functionality
• Wide range of connection options
• Innovative HMI concepts thanks to Smart options
• Additional software included in the delivery scope
• Can be used worldwide with 32 configurable languages (of which 16 are online-switchable)

Area of application

Like all devices of the 370 series, the MP 377 12” Key is intended for HMI tasks of higher complexity, and for use in PROFIBUS DP networks or PROFINET environments. In addition to providing HMI standard functionality, the application range can be expanded through the WinCC flexible options Smart Access, Smart Service, OPC Server and Audit.  Together with the software-PLC WinAC MP, the MP 377 12” Key forms a combined platform for control and visualization tasks.

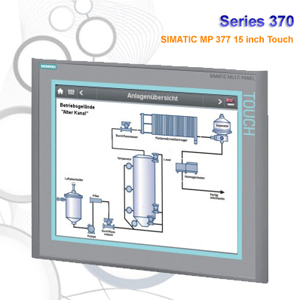

SIMATIC MP 377 15 inch Touch

Description

Most versatile Multi Panel of the 370 series with a TFT touch screen display and a resolution of 1024 x 768 pixels. The MP 377 15” Touch is also available in a model with stainless steel front, as a fully enclosed HMI device with IP65 protection rating and as a customized industry product with daylight-readable display.

Benefits

• Comprehensive functionality
• Wide range of connection options
• Innovative HMI concepts thanks to Smart options
• Additional software included in the delivery scope
• Can be used worldwide with 32 configurable languages (of which 16 are online-switchable

Range of application

Like all devices of the 370 series, the MP 377 15” Touch is intended for HMI tasks of higher complexity, and for use in PROFIBUS DP networks or PROFINET environments. In addition to providing HMI standard functionality, the application range can be expanded through the WinCC flexible options Smart Access, Smart Service , OPC Server and Audit. Together with the software-PLC WinAC MP, the MP 377 15” Touch forms a combined platform for control and visualization tasks

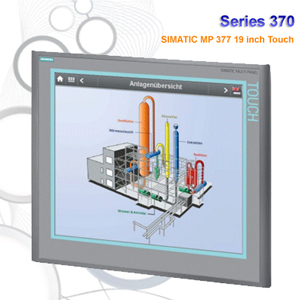

SIMATIC MP 377 19 inch Touch

Description

Biggest Multi Panel of series 370 with a TFT Touch display and a resolution of 1280 x 1024 pixels meeting the highest demands on visualization.

Benefits

• Comprehensive functionality
• Wide range of connection options
• Innovative HMI concepts thanks to Smart options
• Additional software included in the delivery scope
• Can be used worldwide with 32 configurable languages (of which 16 are online-switchable)

Area of application

Like all devices of the 370 series, the MP 377 19” Touch is intended for HMI tasks of higher complexity, and for use in PROFIBUS DP networks or PROFINET environments. In addition to providing HMI standard functionality, the application range can be expanded through the WinCC flexible options Smart Access, Smart Service, OPC Server and Audit.
Together with the software-PLC WinAC MP, the MP 377 19” Touch forms a combined platform for control and visualization tasks

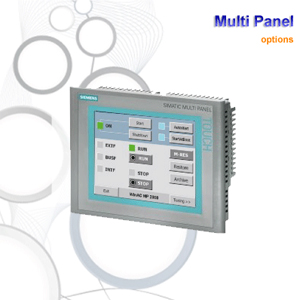

SIMATIC WinAC MP is the software-based alternative to controller solutions employing a SIMATIC S7-300. Win AC MP is available in three versions tailored to the different Multi Panel Series.The functionality of the MP 177 version is comparable to a CPU 313/314, the MP 277 version corresponds to a CPU 315.and the more powerful MP 377 version to a CPU 317.

WinAC MP is available as a software package or in a bundle with the Multi Panel of your choice at a special price. As complete solution comprised of Multi Panel and WinAC MP option, the system also lends itself as a replacement for the SIMATIC C7 control systems.

Highlights

• Space saving since there is no additional hardware needed
• Optimal price/performance ratio – especially for medium-sized plants and machines
• Use of familiar standard tools such as WinCC flexible and STEP 7, existing programs can in general be reused
• Ruggedness like a Hardware CPU
• Non-volatile memory for data, flags, timers and counters is permanently integrated into the Multi Panel hardware
• Backup/Restore by the push of a button on a Standard SD-Card, MultiMediaCard or a USB Stick
• Performance-optimized and easy to use – comes preconfigured
• ET 200 standard components can be flexibly used via PROFIBUS DP
• Freely selectable load distribution between PLC and HMI
• CFC/SCL Programming supported
• Integral routing, all data can be installed and loaded via Profinet
