ThermoView TV40 Thermal Imager

Infrared Temperature Solutions
High performance industrial infrared camera
Features & Benefits
- Pre-calibrated lens with remote motorized focus and multiple available field interchangeable lens options
- Discreet I/O alarms to interface to PLC
- IP67 (NEMA 4) rated with rugged housing allows for installation into harsh environments with air purge and other accessories available
- Wide temperature range: -10 to 1200 °C (14 to 2192 °F)
- 320 x 240 (76,800 pixels) and 640 x 480 (307,200 pixels) resolution
- 9 or 60 Hz models available
- Field of View: horizontal 34º x 25.5º
- Spectral range: 8 – 14 μm
- Ambient temperatures to 200 °C (392 °F) with high temperature enclosure
- ThermoView software for industrial automation applications
- LAN/Ethernet with PoE for communication with the infrared camera provides access to integrated Web server and ThermoView Software
- GigE Vision interface

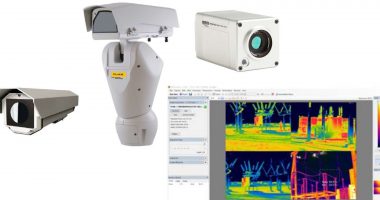

ThermoView® Critical Asset Solution
- Designed for harsh environments IP66 housing, protecting the Thermal Imager from dust and water
- Multiple thermal imager solution for large area thermal viewing
- Option wall or pedestal mounted
- 320 x 240 and 640 x 480 infrared resolution for the ThermoView TV43 and TV46, respectively
- Sighting: IR-Fusion® technology (thermal and visible sighting) for easy alignment and added detail on blended images
- ThermoView PT software – sophisticated analysis based on absolute, differential or rate of change asset temperature conditions.
- Alarm notification through Modbus, digital outputs or email
