Raytek® Raynger® 3i Plus- RAYR3IPLUS1ML

Login to see prices

Overview

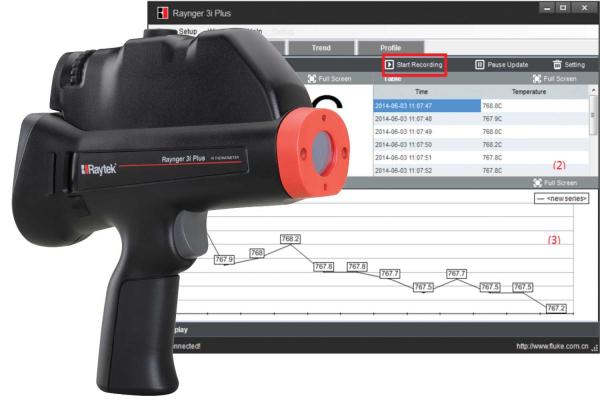

FLUKE PROCESS INSTRUMENTS Handheld Spot Pyrometer 3i Plus Series: 1 micron w/ Dual laser (EN60825 Class 2, FDA Class II), DS 250:1, 700°C to 3000°C (1292 to 5432°F), Bluetooth 4.0, USB is designed in accordance with industry standards to meet process performance requirements in hot environments. The 3iPLUS features a superior Distance-to-Spot (D:S) ratio that allows users to measure high temperature targets from longer distances, ensuring accurate temperature readings and operator safety.

The 3i Plus package contains the following:
*    3i Plus portable thermometer
*    Carrying case
*    Neck Strap
*    CD with operations manual and DataTemp® 3i Plus software for real-time graphic  temperature display and data download
*    1pcs 2.5Ahr Li-battery
*    110 V/60 Hz or 220 V/50 Hz voltage Mini USB port adaptors
*    Mini USB to DC jack converter for charging battery separately
*    Operator’s manual

Key Commercial Data

Measurement Specifications
Temperature Range 700 to 3000ºC (1292 to 5432ºF)
Accuracy ±(0.5% of reading +1ºC) (<2700ºC/4892ºF)
Repeatability ±(0.3% or reading ±1ºC)
Exposure Time 40 mSec
Spectral Response 1.0µm
Emissivity 0.10~1.00
Operating Temperature 0 to 50ºC (32 to 120ºF)
Relative Humidity  10 to 90%, RH noncondensing @ 30ºC (86ºF)
Storage Temperature -20 to 60ºC (-4 to 140ºF) without batteries
Data Logging Up to 4,900 data points



Spec Sheet

For more information like lead time, please contact : sales@dmarktech.com or call +65 67673232



**No Cancellation of Purchase Order Upon Acknowledgement**

** Delivery surcharge of $30 will be applicable if order is below $250 (BEFORE GST)**

** Warranty of 12 months starting from delivery date will be applicable only to manufacturer defects which will be repaired/replaced**
