Ethernet Extender

The new Ethernet extenders allow you to connect Ethernet networks across up to 20 kilomerters via simple two-wire cables. By doin so, you can combine Managed and Unmanaged Ethernet extenders in one network. This innovative combination and the extremely easy startup using Plug and Play enable cost-effective networking and diagnostics of all devices and paths via IP.

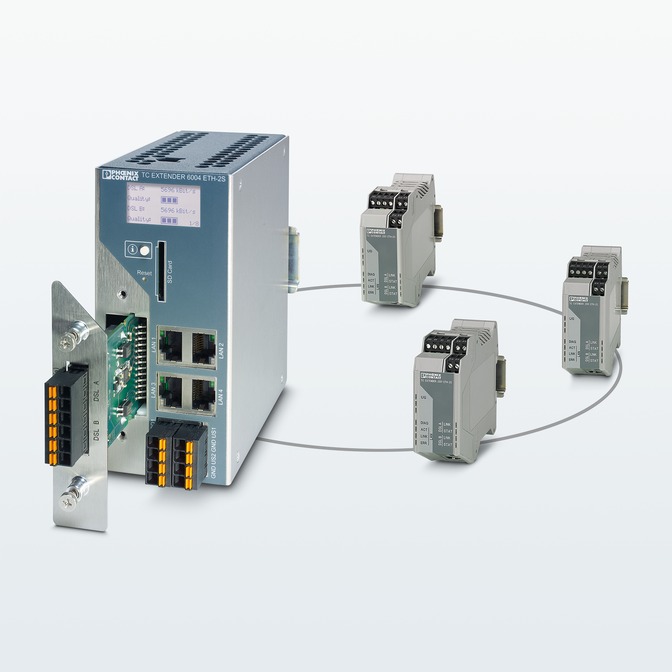

pic con a 0070009 int


Advantages of Ethenet Extenders

  • Ethernet communication up to 20 kilomerters via any two-wire copper cable
  • Cost-effective networking of Managed and Unmanaged Ethernet extenders in complex IP networks
  • Greater flexibility, thanks to continuous remote diagnostics of all devices and paths via IP.
  • High fault tolerance,thanks to preemptive maintenance with replaceable PLUGTRAB PT-IQ  surge protection
  • Impact-free system extension during ongoing operation via any two-wire cables

Unique Ethernet extender Systems

The nnovative combination of managed and unmanaged ethernet extenders in a network make the networking of devices more simple and cost-effective then ever before.

Thanks to the Ethernet extender system, you can establish point-topoint, line and ring structires across up to 20kilometers. Simply use existing two-wire coppeer cables to network the devices. Extension is possible during ongoing operation.

The system detects topologies and data rates. Adjustments are made automatically if the framework conditions are changed. In the event of unexpected events such as line attenuation, you receive a warning.

Managed Ethernet Extender


Thansk to the managed ethernet extender, you can diagnose all devices and paths centrally via IP. Messages can forwarded automatically to the control center via SNMP (Simple Network Management Protocol).

The managed Ethernet extender is available in two versions:

  • 4-port Ethernet switch with two DSL ports for point-to-point,line and ring topologies and display
  • 1-port Ethernet switch with one DSL port for point-to-point applications and LEDs

Both devices have replaceable, high-quality protection with preventive function monitoring. This increase system availability.

pic con a 0069870 int

High-quality surge protection

PLUGTRAB PT-IQ is the forward-looking surge protection system from Phoenix Contact.

Your advantage: multi-stage monitoring of protective devices. This means that failures can be foreseen.

The multi-stage signaling and remote signaling of the protective devices is of particular interest. This enables the following result messages to be sent via SNMP:

  • Performance limit reached, replacement ceommended
  • Overloaded, replacement required


pic con a 0070008 int
