TRIO Series Power Supply

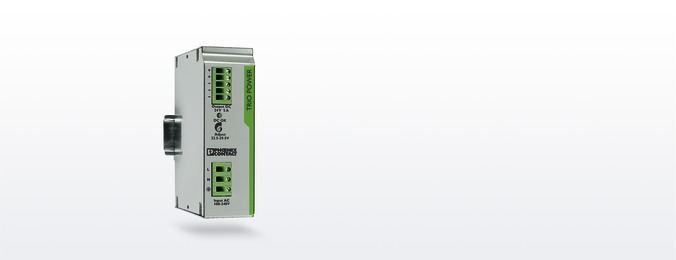

TRIO Power Supply from Phoenix Contact
Standard functions combined with high quality and reliability

Basic functionality at the highest level for standard machine production

In standard machine production, the requirements for a power supply unit are mostly specified in advance. Here, the TRIO POWER power supply units are suitable which provide basic functions at a very high level.TRIO POWER 1~
High operational reliability of one-phase devices die to the high dielectric strength of up to 300 VAC.

TRIO POWER 3~
High system availability of all 3-phase devices, even if one phase fails permanently.
Here, the 5 A and 10 A devices are suitablle for constant operation in two phases without modifying the technical data devices of the power supply unit.

TRIO POWER has the following advantages:
- High operational reliabilty die to high MTBF (Mean Time Between Failure) more than 500,000h.
- Rugged design with metal housing and temperature wide range of -25ºC to +70ºC.
- Compensation of voltage drops through output voltage that can be set on the front side.
- Minimizing the installation costs A third negative terminal is available for the secondary-side grounding. An additional potential distributor or double assignment of a terminal block is not required. This saves time and subsequently costs for the secondary-side grounding.

TRIO power single-phase
Input nominal voltage range: Single-phase AC 100 - 240 V
Input voltage range: Single-Phase AC 85-264 V


Power supply unit - TRIO-PS/1AC/24DC/2.5 - 2866268



Din rail power supply unit, primary-switched mode, 1-phase, output: 24V DC/2.5A


Nominal Output Voltage  DC24V ± 1%
Output Current 2.5A
Parallel / Series Connection Yes / No

This email address is being protected from spambots. You need JavaScript enabled to view it.




Power supply unit - TRIO-PS/1AC/24DC/5 - 2866310

Din rail power supply unit, primary-switched mode, 1-phase, output: 24V DC/5A


Nominal Output Voltage  DC24V ± 1%
Output Current 5A
Parallel / Series Connection Yes / Yes

This email address is being protected from spambots. You need JavaScript enabled to view it.




Power supply unit - TRIO-PS/1AC/24DC/10 - 2866323

Din rail power supply unit, primary-switched mode, 1-phase, output: 24V DC/10A


Nominal Output Voltage  DC24V ± 1%
Output Current 10A
Parallel / Series Connection Yes / Yes

This email address is being protected from spambots. You need JavaScript enabled to view it.




Power supply unit - TRIO-PS/1AC/24DC/20 - 2866381

Din rail power supply unit, primary-switched mode, 1-phase, output: 24V DC/20A


Nominal Output Voltage  DC24V ± 1%
Output Current 20A
Parallel / Series Connection Yes / Yes

This email address is being protected from spambots. You need JavaScript enabled to view it.




Power supply unit - TRIO-PS/1AC/5DC/10 - 2902646

Din rail power supply unit, primary-switched mode, 1-phase, output: 5V DC/10A


Nominal Output Voltage  DC5V ± 1%
Output Current 10A
Parallel / Series Connection Yes / Yes

This email address is being protected from spambots. You need JavaScript enabled to view it.




Power supply unit - TRIO-PS/1AC/12DC/5 - 2866475

Din rail power supply unit, primary-switched mode, 1-phase, output: 12V DC/5A


Nominal Output Voltage  DC12V ± 1%
Output Current 5A
Parallel / Series Connection Yes / Yes

This email address is being protected from spambots. You need JavaScript enabled to view it.




Power supply unit - TRIO-PS/1AC/12DC/10 - 2866488

Din rail power supply unit, primary-switched mode, 1-phase, output: 12V DC/10A


Nominal Output Voltage  DC12V ± 1%
Output Current 10A
Parallel / Series Connection Yes / Yes

This email address is being protected from spambots. You need JavaScript enabled to view it.




Power supply unit - TRIO-PS/1AC/48DC/5 - 2866491



Din rail power supply unit, primary-switched mode, 1-phase, output: 48V DC/5A


Nominal Output Voltage  DC48V ± 1%
Output Current 5A
Parallel / Series Connection Yes / Yes

This email address is being protected from spambots. You need JavaScript enabled to view it.
